📌 Why Choose The Metallographic Grinding & Polishing Machine- Simple type (P20G-2-E)?

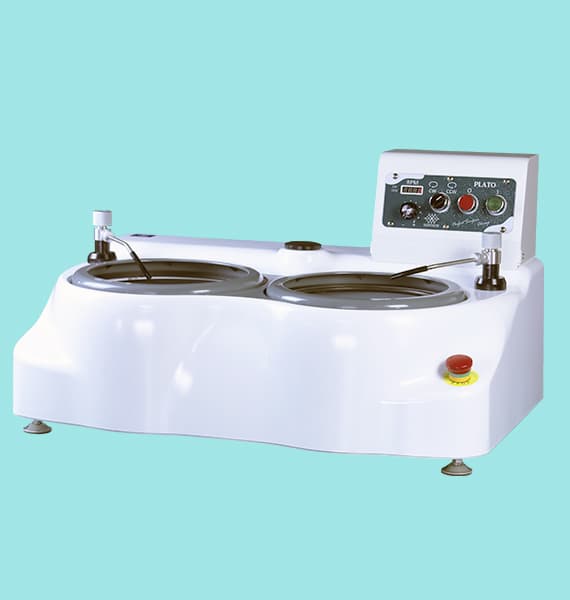

The Metallographic Grinding & Polishing Machine- Simple type (P20G-2-E) is a manual dual-platens grinder and polisher designed for metallographic sample preparation, meeting the needs of electronic industries, laboratories, research institutions, aerospace, automotive and manufacturing industries.
● Dual-platens design: Equipped with both grinding and polishing platens, eliminating the need for frequent platen changes and improving sample preparation efficiency.
● Adjustable speed & rotational directions: Speed range of 50-600 RPM to accommodate various sample requirements.
● Flexible platen size options: Available in 8-inch and 10-inch sizes, compatible with various consumables.
● User-friendly operation: Intuitive interface suitable for all users.
● Easy cleaning: Retractable water spray nozzle for effective platen cleaning, reducing contamination.
| Model | P20G-2-E |
|---|---|
| Platen Size | 8" or 10" |
| Motor Power | 250W |
| Rotational Speed | 50~600rpm |
| Machine Dimensions | 770 (W) x 650 (D) x 450mm (H) |
| Machine Weight | 34~35kg |
| Power Supply | AC 110V / 220V 1Ø |
※Mobiles and tablets can be slid left and right.
📌 Core Advantages
Dual platens designEquipped with a grinding platen and a polishing platen, it offers flexible application, allowing different stages of sample processing to be completed on the same equipment. This design not only enhances work efficiency but also enables quick operation switching based on requirements, making it suitable for metallographic sample preparation of various materials, ensuring efficiency and precision throughout the process.
Lightweight design The body features high durability while remaining relatively lightweight and space-efficient, making it an excellent choice for scientific research and laboratory environments.
Easy operation Incorporates a user-friendly design with an intuitive control panel, ensuring that users can quickly become familiar with its operation.
Superior industrial material body It is free of harmful substances and can be recycled under suitable conditions, meeting the modern industry's requirements for sustainable development.
Platen speed and direction adjustable During the grinding and polishing process, the appropriate rotation speed and platen direction should be adjusted according to the different materials to achieve high-quality sample preparation results.
Telescopic water set The water spray set can be adjusted and extended according to requirements. Whether for cleaning the grinding/polishing platen or tidying up around the machine, users can easily adjust the spray angle and position to achieve comprehensive cleaning results.
Employing the diamond discs (optional) ensures the flatness Further improves the grinding and polishing flatness of samples, especially suitable for high-hardness materials with strict flatness requirements.
Versatile platen options, compatible with various consumables8” and 10” platens are available, and the platens can be easily replaced, allowing for quick changes of consumables and improved work efficiency. Users can flexibly select discs and consumables according to the actual sample preparation requirements, ensuring optimal results for every operation.
Soft start design for the platen The soft start design ensures that the platen gradually accelerates upon startup, allowing the rotational speed to reach the set value steadily, thereby protecting the sample from the impact of sudden acceleration.
