Brand：
P20G-2-R6(R3)
P25G-2-R6(R3/R4)
Other Data：

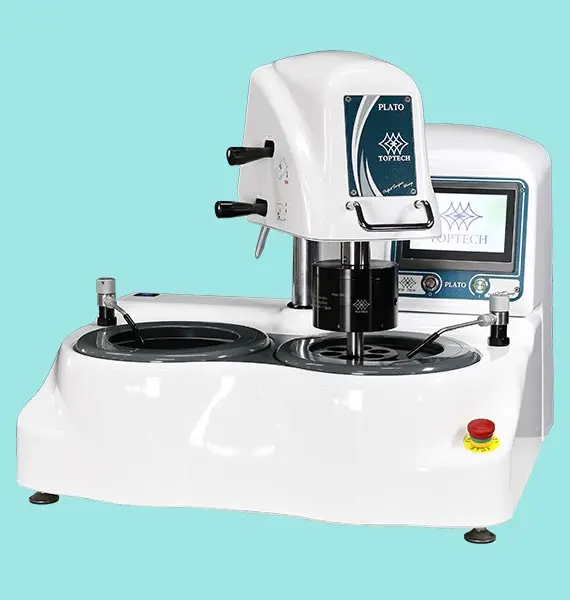

The automatic air pressure grinding and polishing machine (P20G-2-R6) is a specialized dual disc grinding and polishing machine used for metallographic specimen preparation. It is equipped with a pneumatic pressure grinding head, allowing precise adjustments of parameters such as pressure force, disc speed, head speed, and preparation time according to the requirements of metallographic preparation and the material of the sample, to produce a perfect sample surface. This is particularly crucial in the metallographic pre-processing process to ensure the reliability and accuracy of subsequent metallographic analysis. Such features make it convenient for metallographic microstructure observation, metallographic analysis, material analysis, and hardness testing of metal materials or other materials.
Whether in academic research or industrial applications, the high adjustability and automation features of P20G-2-R6 that enable users to easily perform various preparation operations and obtain consistent and high-quality sample surfaces. This makes the machine essential and indispensable equipment in metallographic laboratories and material research fields.
Features
Superior industrial material body
Exquisite Appearance
Streamline appearance design and glossy film surface finishing makes the mechanical appearance artistic and exquisite.
Multi-functional control panel
It is equipped with a high-quality color touch panel, intuitive human-machine interface, and 10 modules of parameter memory function.
Low speed grinding and polishing function
Rotational speed can be lowered to 1 rpm. With external dispenser (optional), it meets the requirement of long-time polishing process without deformation.
Rotational speed of the head is adjustable
The grinding head is equipped with brushless motor with rotation speed from 10~170rpm.
Dispenser (Optional)
Users can control the dispenser by setting up the parameters on control panel.
Automatic drying function
The automatic drying function makes the cleaning process more fast. Also, avoiding the cross contamination during the operating process.
Overload protection
When the total force is more than the default setting during operation, the machine will stop automatically.
Sample Pistons
Sample pistons will lower down lightly to prevent the surface of the specimen from damage.
Modular design
The combined control box can be fixed behind the machine or be placed next to the machine with quick-change design, which is easy to maintenance and can maximize the space.
Individual pressure
Pressing force is between 0.5~6kg. The suggested pressure and amount of samples are marked on the grinding head.
Individual micro force (Optional)
Pressing force is between 0.2~1kg. Suitable for the specimen, requiring the micro force pressing during grinding/polishing.
Central force (Optional)
Pressing force is between 3~12 kg. Quick-released sample holder simplifies the leveling process and cleaning process.
Various choices of platen
Platens with size 8” and 10“ are suitable.
Telescopic water hose and air pressure gun
The machine can be cleaned conveniently.
Various Anti-splash application
Various anti-splash covers can be applied based on the method of polishing process.
| Model | P20G-2-R6 | P20G-2-R3 | P25G-2-R6 | P25G-2-R3 | P25G-2-R4 |
| Platen Size (mm) | Ø203.2 (8”) | Ø254 (10”) | |||
| Platen Quantity | 2 | ||||
| Sample Size / Quantity | Ø25mm, Ø25.4mm, Ø31.75mm, Ø32mm/6pcs Ø38.1mm, Ø40mm/3pcs |
Ø25mm, Ø25.4mm, Ø31.75mm, Ø32mm/6pcs Ø38.1mm, Ø40mm/3 or 4pcs Ø50mm/4pcs |
|||
| Individual Force / Max. Grinding Quantity | 0.5~2kg 6 pcs, 0.5~4kg 3 pcs, 0.5~6kg 2 pcs | ||||
| Max. 12kg in total | |||||
| Precision Individual Micro Force (kg) | 0.2~1 (Optional) | ||||
| Central Force (kg) | 3~12 (Optional) | ||||
| Platen Motor Power (W) | 400 | ||||
| Platen Rotational Speed (rpm) | 1~600 | ||||
| Head Motor Power (W) | 50 | ||||
| Head Rotational Speed (rpm) | 10~170 | ||||
| Timer | 1~360000s (Max. 6000mins) | ||||
| Machine Dimension WxDxH (mm) | 955x650x690 | ||||
| Machine Weight (kg) AC110V 1Ø | 99 | 101 | |||
| Machine Weight (kg) AC220V 1Ø | 89 | 91 | |||
| Standard Accessories | Grinding Platen 1pc, O-Ring 1pc, Polishing Platen 1pc, Anti-Splash Cover 4pcs, Silicon Carbide Paper 8 pcs, Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, PU Pipes 6m, Dispenser 1 pc, Air Pressure Gun 1set | ||||
| Option | P20F0030 Dispenser Set, PA0108-1 8” Anti-Splash Cover (Manual), PA0108 10” Anti-Splash Cover (Manual), PA0108-3 8” Anti-Splash Cover (Auto), PA0108-4 10” Anti-Splash Cover (Auto), PA0108-2 Anti-Splash Cover (Full-Cover) | ||||
