Brand：CH100
Other Data：
📌 Why Choose PRECISO CH100?

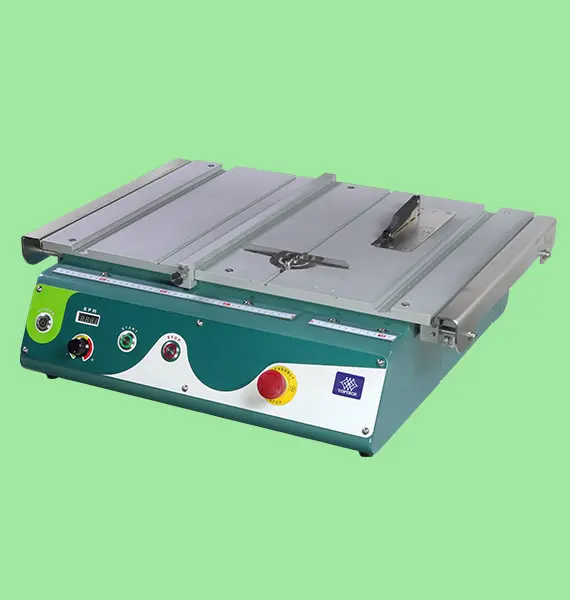

Diamond Saw (PRECISO CH100) specifically designed for cutting board-type samples. It is suitable for PCB boards, carbon fiber boards, and other high-temperature-resistant composite materials, meeting the dry-cutting needs of the electronics and manufacturing industries. The maximum cutting thickness reaches 27mm.
Diamond Saw (PRECISO CH100) provides stable and efficient cutting, which is equipped with a retractable platform, expanding the placement space to make large sample applications more flexible. Additionally, the angle gauge and parallel auxiliary assembly design support various cutting angles, with an adjustable spindle speed of 300~6000 RPM, which can be adjusted according to the material properties.
Diamond Saw (PRECISO CH100) features a magnetic side door and debris disposal guide, enhancing cleaning convenience, effectively reducing debris accumulation after cutting, and ensuring long-term stable operation.
📌 Specification
| Model | CH100 |
|---|---|
| Motor Power | 370W |
| Cut-off Wheel | Ø100mm (Standard) / Ø125mm (Optional) |
| Arbor of Cut-off Wheel | Ø11.5mm |
| Cutting Capacity (Thickness) | 15mm (Standard) / 27mm (Optional) |
| Rotational Speed | 300 ~ 6000 RPM (Adjustable) |
| Machine Dimensions | 690 x 600 x 216 mm |
| Machine Weight | 34kg |
| Power Supply | AC 110V / 220V 1Ø |
※Mobiles and tablets can be slid left and right.
📌 Core Advantages
Suitable for Various Board SamplesWidely applied for the precision cutting of high-temperature-resistant board samples, ensuring smooth cutting edges, such as carbon fiber boards, PCB boards, and other composite materials.

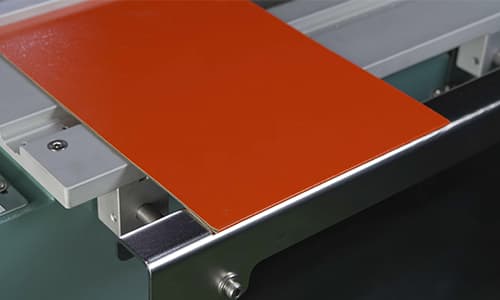

Equipped with a Retractable Platform The platform can be flexibly adjusted according to requirements, effectively enhancing sample placement flexibility and accommodating cutting needs for samples of various sizes.
.jpg)

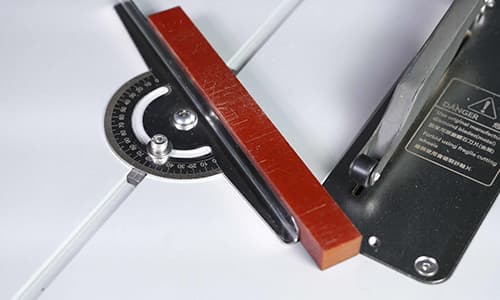

Angle Cutting The angle gauge features a stable structure and clear scale markings, allowing users to easily adjust the desired cutting angle to meet the cutting requirements of various samples.

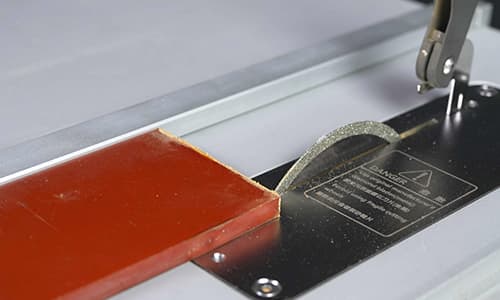

Parallel Auxiliary Assembly for Cutting Assistance The parallel holder provides a stable supporting surface for samples during the cutting process, assisting in securing the sample's position. This ensures a smooth sample surface after cutting, enhancing the overall cutting quality.

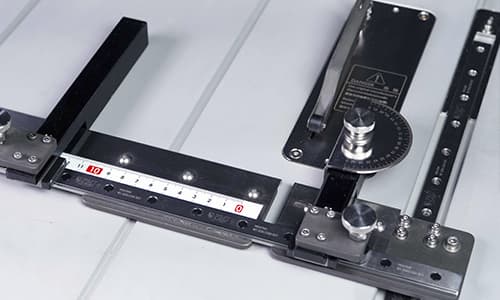

Linear Rail Fixture (Option)： Designed with high-strength linear rails to ensure smooth and stable movement of the fixture during cutting. This effectively enhances the stability and precision of the cutting process, minimizing errors caused by vibration or misalignment.
Cutting Range from Thin Boards to 15mm Thick Materials Equipped with a 4 inch diamond blade, the maximum cutting thickness reaches up to 15mm. It easily meets the cutting requirements for various board samples, ranging from thin boards to medium-thick materials, ensuring effortless cutting.
Flexible Spindle Speed Adjustment The spindle speed is adjustable within a range of 300 to 6000 rpm, allowing users to select the appropriate speed based on the material properties of the sample.
Debris Disposal Guide Design Can be used with external vacuum equipment to effectively guide the discharge of cutting debris, reducing cleanup time after operation. This helps maintain the cleanliness of the equipment's interior and extends its service life.

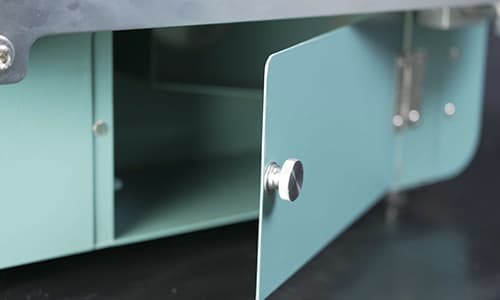

Magnetic Side Door Users can easily open the side door for debris disposal, making the operation effortless and convenient. This allows for quick cleaning and helps maintain the cleanliness of the equipment's interior.
Emergency Stop Allows users to immediately stop the machine's operation in critical situations, effectively preventing accidents. The button is positioned in a prominent and easily accessible location, ensuring users can react quickly to minimize the risk of incidents.
