Metallographic
Grinder & Polisher
(Manual_Single)
P20G1

Brand:P20G-1

Other Data:

Benefits

The manual single disc grinding and polishing machine (P20G-1) is a specialized machine for metallographic specimen preparation, featuring an exquisite appearance and excellent design. It is designed to meet the needs of laboratories or production lines with small quantities of samples and flexible preparation requirements. This machine can grind and polish the sample surface to a mirror-like smoothness, providing a convenient and high-quality solution for metallographic structure observation, analysis, material analysis, hardness testing of metal or other materials, and other needs.

P20G-1 comes with adjustable rotational speed functionality, allowing users to easily perform preparation work on small quantities of samples and obtain high-quality sample surfaces. Its outstanding features and reliability make this manual single-disc grinding and polishing machine an indispensable and ideal choice for metallographic laboratories and materials research fields.

Specification

※Mobiles and tablets can be slid left and right.

Features

Superior industrial material body



Exquisite Appearance

Streamline appearance design and glossy film surface finishing makes the mechanical appearance artistic and exquisite.



Modular design

The combined control box can be fixed behind the machine or be placed next to the machine with quick-change design, which is easy to clean and can maximize the space.



Platen speed and direction adjustable

Adjust the platen speed and rotational direction based on the sample materials.



Low speed grinding and polishing function

Rotational speed can be lowered to 10 rpm. With external dispenser (optional), it meets the requirement of long-time polishing process without deformation.



Various anti-splash application

Various anti-splash covers can be applied based on the method of polishing process.



Automatic drying function

The automatic drying function makes the cleaning process faster. Also, avoid the crossing contamination during the operating process.



Extracted water hose

Clean the machine conveniently



Various choices of platen

Platen size of 8” and 10”are suitable for any consumables application.





Model

P20G-1

P25G-1

Platen Size (mm)

Ø203.2  (8”)

Ø254 (10”)

Platen Quantity

1

Grinding Method

Manual

Platen Motor Power (W)

400

Platen Rotational Speed (rpm)

1~600

(Effective Rotational Speed 10~600)

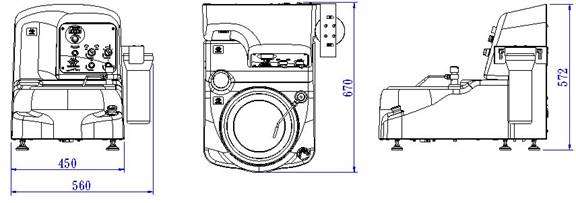

Machine Dimension

WxDxH (mm)

560x670x572

Machine Weight (kg) AC110V 1Ø

46

47

Machine Weight (kg) AC220V 1Ø

36

37

Standard Accessories

Polishing Platen 1pc, Anti-Splash Cover 1 pc, Silicon Carbide Paper 8 pcs,  Polishing Cloth 2pcs, Aluminum Oxide Powder 100g, Filter 1 set, 500g Dispenser 1 pc

Option

P20F0027 Dispenser Set for One Bottle, P20F0028 Dispenser Set for Four Bottles, PA0108-1 8” Anti-Splash Cover (Manual), PA0108 10” Anti-Splash Cover (Manual), PA0108-3 8” Anti-Splash Cover (Auto), PA0108-4 10” Anti-Splash Cover (Auto)
