Brand：M-P300M
Other Data：

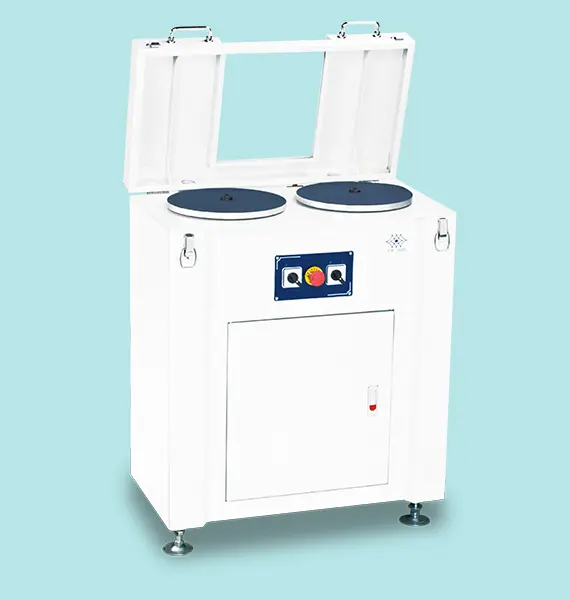

M-P300M is a floor standing grinding machine specifically designed for metallographic specimen preparation, and it is also suitable for sample preparation needs on production lines. This machine features dual-disc surfaces that can be independently controlled, allowing users to separately control two disc surfaces. This enables simultaneous grinding of two different materials, further enhancing the efficiency of sample preparation.
The versatile design of M-P300M makes it highly suitable for metallographic processing in both laboratories and production lines. Users can handle various samples with different materials flexibly, obtaining accurate and clear test results.
※Mobiles and tablets can be slid left and right.
|
|
|
PLATO-E SERIES MODEL NO. M-P300M
|
|
|
|
Specification |
M-P300M |
|
Silicon carbide paper quantity |
2 |
|
Plate size |
Ø300mm x 2 |
|
Grinding motor |
1/2HP x 2 |
|
Effective rotational speed (rpm) |
1500 |
|
Grinding method |
Exhaust type |
|
Machine type |
Shop floor |
|
Machine size (WxDxH) |
760x410x920mm |
|
Power supply |
AC220V-1Ø |
|
Standard accessories |
Silicon carbide papers x2 |
|
option |
vacuum cleaner |
We reserve the right of change design without notice.
