PRECISO-CL SERIES
CLM50

Brand：CLM50

Other Data：

Add to Inquiry Send to Inquiry Back

Benefits

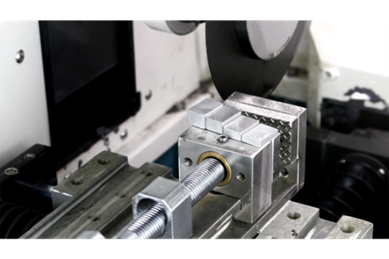

CLM50 is a desktop precision diamond cutting machine, widely used in metallographic pretreatment processes. It can be paired with diamond blades that have excellent hardness and wear resistance, allowing for fast and precise cutting of materials of various hardness. It can also be used with grinding wheels to significantly accelerate subsequent sample preparation.

With precision movement in the X, Y, and Z axes, it can cut workpieces up to Ø50mm in size, suitable for testing requirements of various materials, including steel, iron, copper, titanium, aluminum, ceramics, spark plugs, sensors, fasteners, carbon fiber boards, etc. Whether used in the automotive industry, aerospace industry, manufacturing industry, or research/educational institutions, it can provide efficient and accurate cutting results, ensuring high-quality samples for subsequent metallographic observation, hardness testing, and material analysis.

Specification

※Mobiles and tablets can be slid left and right.

Features Intuitive touched panel, easy operation Intuitive touched panel with high recognition graphics. It's easy to operate and saving time dramatically. Rotational speed The cut-off wheel speed can be up to 5000 rpm. This can easily satisfy all kinds of material cutting with precision parameter setting and cut-off wheel of Top Tech.

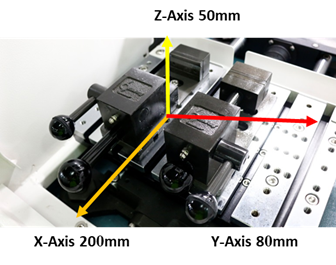

	The longitudinal movement (X-axis) can be up to 200mm with feeding cutting. The horizontal movement (Y-axis) can be up to 80 mm with serial cutting. The vertical movement (Z-axis) can be up to 50mm. With the height movement, the consumables can be saved according to the size of cut-off wheel.
Serial cutting With optional horizontal movement set, slices equal thickness or different thickness is possible. Four slices of different thickness can be cut. LED Cutting chamber which is illuminated by powerful LED makes it easy to observe the cutting process.

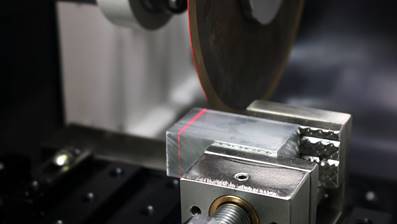

	Laser alignment Machine is equipped with laser alignment. This will help user define the exact position during the operation.

Intelligence cut

The feed will adjust automatically to different thickness and hardness od materials. When motor is overloaded, the speed will reduce to appropriate value automatically. When the overload of motor reduces, the speed will return to the setting value.

Memory mode

A library of 10 different memory modes can be used with different materials and parameters.

Specification CLM50
Vise travel	200 mm
Feeding rate (manual)	0.01～5 mm/sec
Feeding rate (automatic)	0.01～5 mm/sec
Spindle travel	50 mm↑↓
Motor power	1500W
Cutting capacity	φ50 mm
Cut-off wheel (Dia.xArbor)	φ3"～ φ8" (φ12.7 or φ31.75)
Flange(Dia)	φ40 & φ60 & φ80
Cutting mode	Home point return after cutting
Overload protection	Automatic deceleration when overload
Rotational speed	500～5000 RPM
Coolant capacity	External：50L
Dimension WxDxH (mm)	850x850x600 mm
Weight Kg	166 Kg
