Brand：
P20G-1-E
P25G-1-E
Other Data：

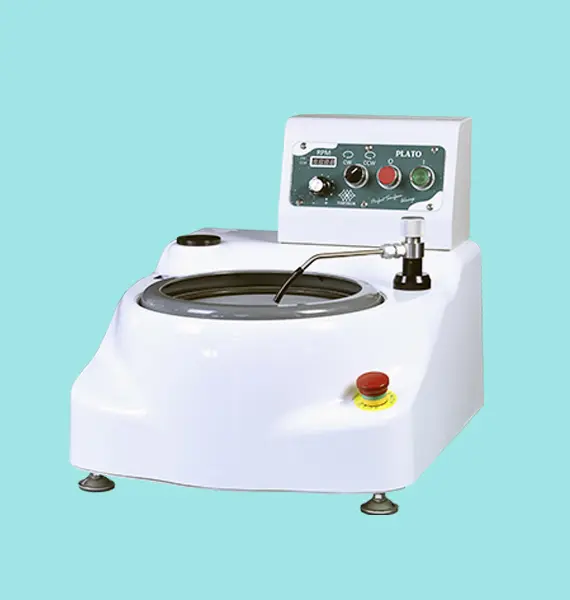

📌 Why Choose the Economical Grinding and Polishing Machine (P20G-1-E)?
The economical grinding and polishing machine (P20G-1-E) stands out for its affordability and compact design, making it an excellent choice for users with budget constraints who still require stable grinding and polishing performance.
The economical grinding and polishing machine (P20G-1-E) weighs only 22kg, making it suitable for various laboratory environments, as it is space-saving and easy to move.
Additionally, its adjustable speed of 50~600 rpm and reversible rotation allow flexible application for different materials. The availability of 8" and 10" platen options makes consumable replacement more convenient, enhancing work efficiency.
The economical grinding and polishing machine (P20G-1-E) also boasts simple operation and low maintenance costs. Its intuitive control panel allows users to get started quickly, while the retractable water spray design helps maintain cleanliness and reduces daily maintenance efforts.
📌 Machine Specifications
| Model | P20G-1-E |
|---|---|
| Platen Size | 8" or 10" |
| Motor Power | 250W |
| Rotational Speed | 50~600rpm |
| Machine Dimensions | 450 (W) x 670 (D) x 450mm (H) |
| Machine Weight | 22~23kg |
| Power Supply | AC 110V / 220V 1Ø |
※Mobiles and tablets can be slid left and right.
📌 Core Advantages
Lightweight designThe body features high durability while remaining relatively lightweight and space-efficient, making it an excellent choice for scientific research and laboratory environments.

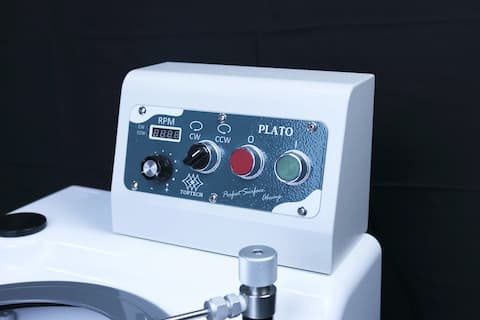

Easy operation Incorporates a user-friendly design with an intuitive control panel, ensuring that users can quickly become familiar with its operation.
Superior industrial material body It is free of harmful substances and can be recycled under suitable conditions, meeting the modern industry's requirements for sustainable development.

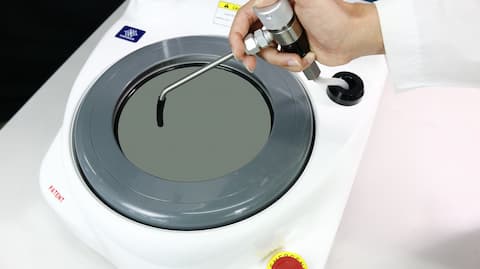

Telescopic water set The water spray set can be adjusted and extended according to requirements. Whether for cleaning the grinding/polishing platen or tidying up around the machine, users can easily adjust the spray angle and position to achieve comprehensive cleaning results.
Platen speed and direction adjustable During the grinding and polishing process, the appropriate rotation speed and platen direction should be adjusted according to the different materials to achieve high-quality sample preparation results.
Employing the diamond discs (optional) ensures the flatness Further improves the grinding and polishing flatness of samples, especially suitable for high-hardness materials with strict flatness requirements.
Versatile platen options, compatible with various consumables 8” and 10” platens are available, and the platens can be easily replaced, allowing for quick changes of consumables and improved work efficiency. Users can flexibly select discs and consumables according to the actual sample preparation requirements, ensuring optimal results for every operation.
Soft start design for the platen The soft start design ensures that the platen gradually accelerates upon startup, allowing the rotational speed to reach the set value steadily, thereby protecting the sample from the impact of sudden acceleration.
