Metallographic Cutting Selecting 2025｜5 Key Considerations

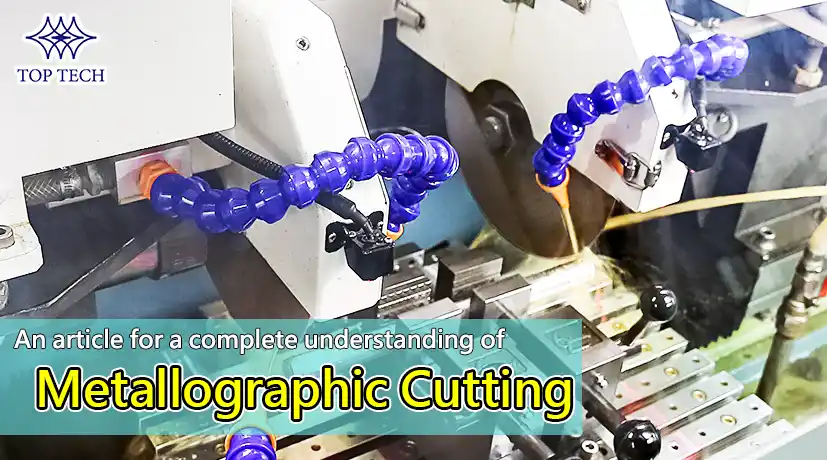

Metallographic cutting is essentially a high-precision cutting technique used to separate specimens from the parent material or workpiece while maximizing the preservation of the material's original structure and microscopic characteristics. It aims to avoid the adverse effects of thermal damage, mechanical deformation, or cutting-induced damage, ensuring the accuracy of subsequent metallographic analysis.

Metallographic sectioning is the first step in material analysis, inspection, and experiments. Its primary function is to use a metallographic cutting machine to cut materials into samples suitable for subsequent mounting, grinding, and polishing.

During material analysis, quality control is crucial, and the use of appropriate laboratory equipment is essential to ensure the quality and accuracy of the results.

Below are the main purposes and functions of metallographic cutting machines:

1. Preserving the Sample Integrity：
Metallographic cutting machines are designed to prevent thermal or physical damage during the sectioning process, ensuring the integrity of the sample. This avoids any negative impact on subsequent metallographic experiments, observations, and inspections, thereby guaranteeing the quality of the results.

2. Suitable for a Variety of Materials：
Metallographic cutting machines can handle a wide range of materials, including soft metals, hard metals, superhard materials, and non-metal materials. This makes them applicable across various industries.

3. Integration with Other Metallographic Preparation Steps：
After metallographic sectioning, samples typically undergo cold mounting or hot mounting, allowing for smooth grinding and polishing. The structure or composition of the sample can then be observed using a metallographic microscope.

4. Scientific Research and Quality Control：
Metallographic sectioning techniques are used to analyze the microstructure of materials, evaluate the effects of new materials and processes, and ensure quality control during manufacturing. The precision and stability of laboratory equipment directly impact the final quality of research and analysis.

5. Heat Treatment Effect Evaluation：
Metallographic sectioning helps analyze the impact of heat treatment on materials, such as changes in grain size and phase composition. This technique allows for an effective evaluation of the results of heat treatment, contributing to material quality control.

6. Defect Detection：
Metallographic cutting machines can detect defects such as inclusions, voids, and cracks in materials, ensuring material quality and reliability.

7. Hardness Testing：
Samples prepared using metallographic cutting machines can undergo hardness testing to evaluate the hardness and strength of the material, assisting in quality control.

Metallographic cutting machines are widely used across industries such as automotive, aerospace, manufacturing, and electronics. They also play a significant role in research and education, driving advancements in materials science and engineering. Whether in laboratories or factories, these machines directly influence the final quality of the entire analysis process.

TopTech offers a complete and diverse product line in the field of metallographic sectioning, including precision cutting machines and precision diamond saws. When purchasing these metallographic cutting machines, users should consider the following important factors：

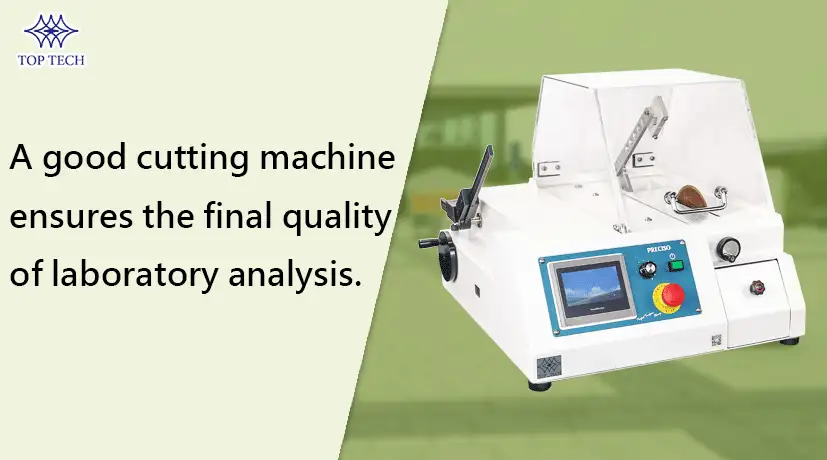

1. Sample Size and Shape
The size and shape of the sample are crucial when selecting a metallographic cutting machine. Precision cutting machines are generally suitable for cutting larger metal samples, with a maximum cutting diameter of up to Ø150mm. Precision diamond saws are specifically designed for cutting smaller or more precise samples.

For board samples, using a specialized precision diamond saw ensures accuracy and cutting quality, maintaining the stability of the sample for subsequent analysis.

2. Sample Material

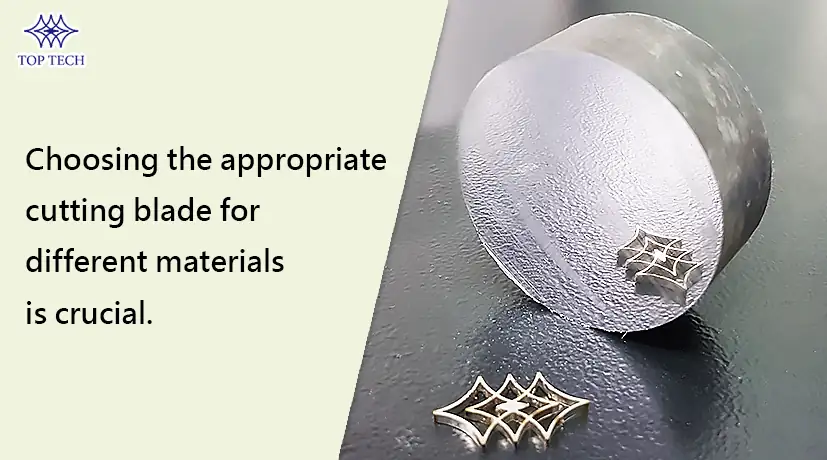

The material of the sample directly affects the choice of the metallographic cutting blade. For ferrous metals, CBN (Cubic Boron Nitride) cutting blades or aluminum oxide abrasive blades are typically used, such as TopTech’s S02A and S02C series metallographic cutting blades. Non-ferrous metals or Non-metal samples often use diamond cutting blades or silicon carbide abrasive blades, like the S02F series.

Different materials have varying requirements for metallographic cutting blades, making the selection of the correct blade essential to ensure consistent cutting results and meet quality control standards.

3. Cutting Precision
Cutting precision is another factor influencing the choice of a metallographic cutting machine. Generally, precision diamond saws offer superior precision. If the user requires strict parallelism after cutting, choosing a precision diamond saw with a slower feeding cutting rate will achieve higher quality standards.

4. Frequency of Use
The frequency of use is an important factor when selecting a metallographic cutting machine. Machines used frequently require high durability and stability to ensure consistent performance during long periods of intensive use. This is critical when selecting laboratory equipment.

5. Ease of Operation
The ease of operation of a metallographic cutting machine is also crucial, as simpler operation can increase work efficiency. Laboratory equipment with user-friendly interfaces reduces learning time, allowing operators to master the equipment more quickly.

6. Budget
Users should select cost-effective metallographic cutting machines based on actual needs and financial conditions. Choosing high-quality, durable laboratory equipment ensures long-term benefits in metallographic sample preparation while keeping costs under control.

7. Maintenance
Easy maintenance of a metallographic cutting machine can reduce daily maintenance costs and extend its lifespan. TopTech’s machines are not only durable but also feature easily replaceable parts. This design allows for smoother workflow and ensures stable quality control of materials.

8. After-Sales Service
TopTech provides comprehensive after-sales service, ensuring that any issues with the metallographic cutting machine during use can be resolved promptly. Reliable after-sales support is key to ensuring the stable operation of laboratory equipment.

9. Cost-Effectiveness and Overall Value
Users should consider the purchase price, maintenance costs, and long-term benefits of the metallographic cutting machine. Selecting laboratory equipment with a good price-to-performance ratio ensures that it meets the highest standards in terms of performance, durability, and long-term cost, maximizing overall value.

TopTech has nearly 30 years of experience in metallographic preparation, and our products are widely used in various laboratories, providing the best cutting quality. By considering the factors above, users can select the most suitable metallographic cutting machine based on actual needs, achieving an optimal balance between cutting quality, efficiency, and cost.

Choosing the right metallographic cutting machine will make your metallographic analysis work more efficient and effective.

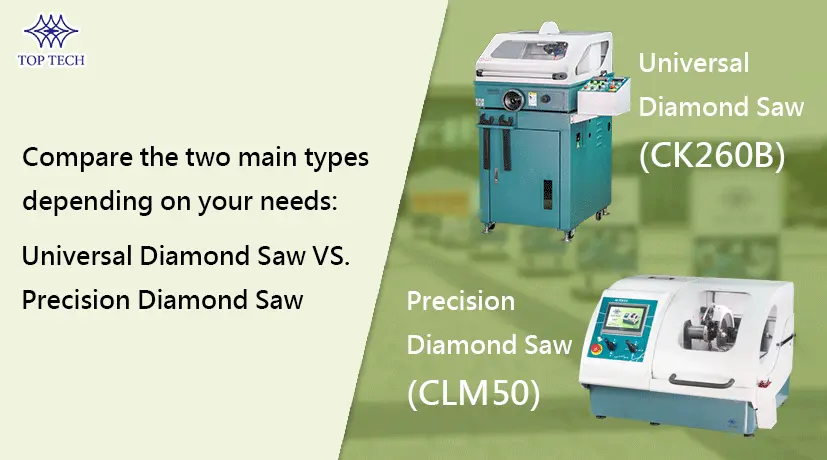

Metallographic cutting machines can be divided into two main types: Precision Cutting Machines and Precision Diamond Saws. Both types have distinct features and applications in the material preparation process, providing optimal solutions for different needs, especially in quality control of materials.

1. Precision Cutting Machine
Precision cutting machines, used with metallographic cutting blades, are widely applied in industries such as automotive, aerospace, manufacturing, and research institutions, where there are strict requirements for product quality.

This laboratory equipment is suitable for cutting various metallic samples, such as steel, iron, copper, titanium, aluminum, as well as ceramics, spark plugs, sensors, fasteners, motors, crankshafts, gears, and turbines.

Precision cutting machines play a critical role in ensuring the precision and consistency of cut samples, meeting high-quality standards.

(1) Automotive Industry：Precision cutting machines are used to cut automotive components such as crankshafts, gears, and turbines, providing high-precision cuts that ensure the accuracy and performance of these parts, improving overall vehicle quality.

(2) Aerospace Industry：Precision cutting machines can handle various aerospace metals like titanium and aluminum alloys, which are essential for aerospace structures. The high-precision cutting ensures compliance with aerospace part quality control standards.

(3) Manufacturing Industry：Precision cutting machines are used for cutting various mechanical parts like motors and fasteners, ensuring production efficiency and product quality, enhancing productivity while maintaining high standards.

(4) Research and Educational Institutions：Precision cutting machines are used for material science research and experiments, providing accurate samples that support laboratory research efforts.

Depending on the cutting mode, precision cutting machines can be classified into several types, offering precise cutting solutions based on different needs. These cutting technologies are widely used in laboratory equipment for various applications.

(1) Feeding Cutting
Operation Method：The sample is fixed on a vise, and the metallographic cutting blade makes contact with the sample through manual or automatic movement.

Features：
Feeding cutting maintains stable and consistent cutting quality, crucial for precision inspection. Poor cutting may cause cracks or deformation on the sample surface, affecting microscopic structure observation and hardness testing. To meet these needs, TopTech's CK series precision cutting machines, such as the CK200B Automatic metallographic cutting machine, utilize feeding cutting technology.

This technology ensures stability by gradually advancing the cutting blade into the sample, controlling the increasing resistance as it makes contact with the surface. It is particularly suitable for cutting various materials, reducing vibration and displacement, and ensuring sample integrity.

The CK200B precisely controls the cutting process via an automatic feeding system, making it ideal for handling large batches of samples. Automatic feeding ensures easy and consistent operation, with features like one-button start and automatic return after cutting.

(2) Chop Cutting
Operation Method：The sample is fixed on a vise, and the metallographic cutting blade automatically cuts the sample in an arc from top to bottom.

Features：
 Extended Blade Life
Chop cutting technology fully utilizes the entire surface of the cutting blade, prolonging its lifespan. This is particularly important in laboratories that require long operating hours or process large batches of samples, as it significantly reduces the frequency of blade replacement and lowers operating costs.

 Enhanced Work Efficiency
Chop cutting enhances work efficiency by allowing operators to focus more on cutting quality and subsequent inspection processes without frequently replacing consumables. This not only improves efficiency but also ensures the stability and consistency of the cutting process.

TopTech's CF series precision cutting machines, such as the CF250B, incorporate chop cutting technology. The CF250B's design effectively extends the blade's cutting life, reducing the need for frequent blade replacement.

Its stable power and cutting process ensure consistency across various materials and sample sizes, making it a valuable technology for laboratories requiring precise inspection.

(3) Step Cutting
Operation Method：The sample is fixed in a vise, the blade first descends a certain distance, and then the sample is automatically moved for cutting. The blade retracts to the starting point, descends further, and repeats the process until the sample is completely cut.

Features：
 Reduced Resistance and Blade Wear
Step cutting technology reduces accumulated resistance during cutting by gradually entering the sample. This not only reduces blade wear but also minimizes the risk of blade breakage, especially when cutting larger or thicker materials.

 Increased Safety and Stability
Step cutting ensures safety and stability when cutting thick materials. By gradually entering the sample, the risk of high-pressure stress on the blade is reduced, preventing blade breakage and ensuring operational safety. This is particularly important for laboratory equipment that runs for extended periods, as stable cutting processes ensure long-term operation.

TopTech's CF series precision cutting machines, such as the CF450S, are equipped with step cutting technology designed for cutting larger or thicker materials. This technology reduces resistance build-up, minimizes the risk of blade breakage, and ensures safety and stability when cutting thick materials. It also improves laboratory equipment efficiency, especially during long-term operation, where stability is crucial.

2. Precision Diamond Saws
Precision diamond saws, often used with diamond cutting blades or CBN (cubic boron nitride) cutting blades, are widely applied in research and educational institutions, inspection units, and in the electronics and manufacturing industries. They are particularly important for high-precision sample preparation in laboratories.

These saws are suitable for cutting various materials, such as ceramics, plastics, aluminum, copper, iron, PCB boards, glass, and carbon fiber panels. The cutting precision and flatness provided by precision diamond saws are critical for laboratory equipment applications.

Precision diamond saws are widely used in the following areas：

(1) Research and Educational Institutions
Precision diamond saws are extensively used in research and educational institutions for material studies and experiments. These saws can perform fine cutting, ensuring the flatness of the sample surface and meeting stringent research standards. For example, in materials science research, precision diamond saws can cut various hard and brittle materials, such as crystals, ceramics, and glass, providing high-quality samples for subsequent analysis and testing in the laboratory.

(2) Electronics and Manufacturing Industries
In the electronics and manufacturing industries, precision diamond saws are widely used for cutting electronic components, PCB boards, and various precision parts. These saws ensure high precision and consistency, meeting the quality control requirements of the production process. For instance, in PCB manufacturing, precision diamond saws are used to cut complex circuit boards, ensuring smooth and flat cutting edges, thereby improving product reliability and performance, while meeting the high standards required in laboratory.

When processing board samples, such as glass, carbon fiber panels, and PCB boards, precision diamond saws are ideal for performing precise cutting operations. These materials have different characteristics but all require high precision and smooth cutting edges to maintain material integrity and surface smoothness.

(1) Glass Sample Cutting
For fragile glass samples, the feeding rate of the diamond saw is crucial. It is recommended to use a very slow and steady feeding rate to ensure the smoothness of the edges during the cutting process while reducing the risk of cracking. An appropriate feeding rate can effectively reduce stress concentration, prevent cracks, and ensure product quality after cutting.

(2) Carbon Fiber Panel Cutting
Carbon fiber panels are often prepared using the diamond saw mode. Proper cooling is essential to avoid material changes in the carbon fiber during the metallographic sectioning process.

(3) PCB Cutting
PCB cutting requires high-precision cutting technology to ensure the integrity and functionality of the circuit board. Precision diamond saws provide stable and smooth cutting edges, making them ideal for the precise processing of electronic components.

Precision diamond saws offer high precision and smooth cutting results when handling board samples such as glass, carbon fiber panels, and PCB boards. Proper feeding rate and cutting technique are crucial for minimizing material damage and ensuring product quality.

Metallographic cutting machines are typically used with metallographic cutting blades, diamond cutting blades, or CBN (cubic boron nitride) cutting blades. The grain size of these cutting blades is relatively fixed, resulting in consistent surface scratches and depth on the sample after cutting. This consistency makes the subsequent grinding and polishing processes more time-efficient and ensures high-quality analysis results.

Metallographic cutting blades can be categorized based on abrasive grains into various types. Common abrasives include aluminum oxide and silicon carbide. A complete metallographic cutting blade consists of many abrasive grains, which are bonded together. Selecting the appropriate cutting blade for the laboratory equipment can effectively improve work efficiency while ensuring sample quality.

During the cutting process, the abrasive grains grind the sample but are also worn down themselves. As the grains wear out, they naturally fall off, revealing new grains. As a result, the diameter of the cutting blade gradually decreases during use, but this helps maintain consistent cutting performance.

1. Aluminum Oxide Abrasive
Aluminum oxide abrasives are relatively soft and wear out quickly, making them particularly suitable for cutting metal samples such as steel or iron. Their softness ensures that they remain sharp during the metallographic cutting process but are consumed faster. However, these abrasives are highly effective for processing metal samples, providing stable and efficient cutting performance, which is crucial for maintaining consistency in quality control.

2. Silicon Carbide Abrasive
In contrast, silicon carbide abrasives are harder than aluminum oxide abrasives and are especially suited for cutting non-ferrous metals or non-metal samples such as aluminum, copper, lead, and resins. The higher hardness of silicon carbide allows it to last longer and maintain higher cutting quality when processing these materials, which helps improve sample preparation quality.

Choosing the appropriate abrasive and bonding method is crucial for cutting different materials. Aluminum oxide abrasives are ideal for metal samples, providing smooth and efficient cutting, while silicon carbide abrasives are more suited for non-ferrous metals or non-metal samples, ensuring cutting precision and sample integrity, which is essential for high-quality sample analysis.

In addition to metallographic cutting blades, CBN (cubic boron nitride) blades and diamond blades are also commonly used in metallographic sectioning.

1. CBN Blades
CBN blades are extremely hard and are typically used to cut samples that cannot be processed with aluminum oxide or silicon carbide abrasives, such as tungsten steel and other high-hardness metals. CBN blades can be categorized by bonding methods into metal bonded, resin bonded, and electroplated blades. These blades provide stable and high-quality cutting results, making them ideal for cutting high-strength materials.

2. Diamond Blades
Diamond blades are suitable for cutting non-ferrous metal samples or non-metal workpieces such as aluminum, copper, passive components, and other electronic parts. However, diamond blades do not perform well when cutting ferrous metals, as the carbon in ferrous metals accelerates diamond wear, resulting in poor cutting performance. Therefore, when using diamond blades in the laboratory, it is important to select the blade based on the material properties to achieve the best cutting quality.

Both CBN and diamond blades can be categorized by bonding methods into metal bonded, resin bonded, and electroplated blades. Choosing the appropriate blade and bonding method based on the specific laboratory equipment ensures long-term use and stable performance.

1. Metal Bonded Blades
Metal bonded blades offer the best grain bonding strength and wear resistance, providing the best shape retention and longevity. These blades are ideal for long-term, high-strength cutting applications, especially in environments with strict material quality control requirements.

2. Resin Bonded Blades
Resin bonded blades offer some flexibility, which reduces the destructive force during cutting and effectively prevents sample damage. This is crucial for subsequent testing and analysis with other laboratory equipment.

3. Electroplated Blades
Electroplated blades have large and rough grains, which increase cutting capability but also result in higher wear. These blades are suitable for applications requiring high cutting efficiency, allowing for quick completion of cutting tasks while ensuring high-quality sample preparation.

Understanding the characteristics and applications of different abrasives and bonding methods is critical. CBN blades and diamond blades each have their own features and applicable scenarios. Choosing the right blade for the sample material and processing requirements, combined with appropriate laboratory equipment, can greatly improve cutting efficiency and quality while protecting sample integrity.

CBN blades are ideal for cutting high-hardness metals, while diamond blades are better suited for non-ferrous metals and non-metal samples. Choosing the right bonding method during the cutting process ensures optimal blade performance and durability.

During sample preparation, metallographic cutting blades, CBN blades, and diamond blades generate a lot of heat due to high-speed rotation, making cooling crucial in the metallographic sectioning process, especially during high-strength cutting in laboratory equipment. A good cooling system is essential for protecting both the blade and the sample, ensuring cutting quality.

The primary reasons for proper cooling in the metallographic sectioning process include:

1. Preventing Sample Deformation
Without proper cooling, heat accumulation during metallographic sectioning can cause material deformation, directly impacting subsequent metallographic observation. Heat can lead to material changes, structural deformation, or hardness alterations, which can distort observation results and reduce the accuracy of analysis.

2. Improving Metallographic Sectioning Quality
Proper cooling helps maintain stability during cutting, ensuring the smoothness and flatness of the sectioning surface. Without sufficient cooling, the sample may develop uneven surfaces, increasing the workload and time required for subsequent grinding and polishing, thereby reducing preparation efficiency.

3. Extending the Blade Life
Without proper cooling, the blade may overheat, accelerating wear and even causing damage. An effective cooling system lowers the blade's operating temperature, extending its lifespan and reducing the frequency of replacement, ultimately saving costs.

4. Safety Considerations
Overheated blades and samples pose safety risks, especially in high-temperature environments where cutting can generate sparks or other hazards. Proper cooling effectively reduces these risks, ensuring operational safety.

Due to these reasons, the wet cutting mode is widely used in metallographic sectioning. TopTech’s cutting fluids are high-quality, imported from Japan, and tested to effectively dissipate the heat generated during the cutting process. This protects both the sample and the blade, ensuring cutting quality, safety, and extending blade lifespan.

The price range and cost-effectiveness of metallographic cutting machines vary depending on the brand, model, and features. Below are key factors to consider both before and after purchasing a metallographic cutting machine.

Pre-Purchase Considerations

1. Model and Functions
The price of metallographic cutting machines varies depending on their functions. High-end models are equipped with advanced cutting technologies and automation features, which can reduce manual operation time but come at a higher cost. When selecting laboratory equipment, it is essential to choose based on the sample size, type of material, and required cutting precision. This ensures the equipment meets the laboratory's specific needs without exceeding the budget.

2. Budget Limitations
Defining a budget range is crucial as it affects the selection of metallographic cutting machine brands and models. High-priced machines offer more advanced features but may not fit within budget constraints. It’s essential to select based on actual usage needs and financial conditions to ensure the purchase of cost-effective laboratory equipment while keeping costs under control.

3. Brand and Manufacturer
TOPTECH has nearly 30 years of manufacturing experience in the metallography field, with over 50 patents worldwide. These machines are known for their stable quality and competitive pricing, making them the preferred choice for many laboratories.

4. Product Lifespan and Durability
High-quality machines typically have a longer lifespan and greater durability, which is particularly important for laboratory equipment that undergoes frequent use. Such machines require fewer repairs and have a longer life, reducing the frequency of equipment replacement.

Post-Purchase Considerations

1. Operating Costs
Operating costs include energy consumption, consumables (such as cutting fluids), and maintenance and repair expenses. Even if the initial investment is low, long-term usage in the laboratory may incur higher operating and maintenance costs. Therefore, it's crucial to consider overall operating costs for optimal cost-effectiveness.

2. Consumable Costs
Some metallographic cutting machines require specific cutting fluids or other consumables. Over time, the cost of these consumables can add up, particularly for long-term use. It is important to consider the availability and price of consumables, especially for laboratories with high-frequency usage.

3. Energy Consumption
Evaluating the energy efficiency and consumption of the machine is key to controlling the laboratory's operational costs. Energy-efficient machines can reduce daily energy consumption and improve overall operational efficiency.

4. Maintenance Requirements
Different brands and models of metallographic cutting machines have varying maintenance needs. Understanding the frequency and cost of maintenance can help reduce long-term expenses and ensure the long-term stable operation of laboratory equipment.

5. Repair Services
Evaluating the after-sales service and support offered by the manufacturer is crucial. Reliable repair services are essential for long-term use, and fast and efficient repair support helps maintain the operational quality of laboratory equipment and ensures that the experiment schedule is not delayed.

In addition to the initial purchase cost, the overall cost of ownership must also be evaluated, as low-priced laboratory equipment might increase overall costs in the long term.

Long-Term Investment Value

Choosing a reputable and reliable brand and model may involve higher initial investment but can provide better returns and lower overall costs in the long run. High-quality laboratory equipment can improve productivity and efficiency while reducing long-term maintenance and repair expenses.

When purchasing a metallographic cutting machine, it is important to consider both short-term and long-term costs. Assess the machine’s performance, energy efficiency, maintenance and repair costs, as well as the anticipated improvements in productivity and efficiency, to make a decision that best fits both your needs and budget.
